Structure Wildfire Emissions Estimator and Predictor Demo

Load dependencies

import os
import pandas as pd
import geopandas as gpd
import matplotlib.pyplot as plt
import matplotlib.cm as cm
import matplotlib.colors as colors

from sweep import config
from sweep.estimator_main import sweep_estimator
print("Imports complete!")

# We'll set this option so it doesn't abbreviate dataframes.
pd.set_option('display.max_columns', None)

Imports complete!

Emissions Estimator

SWEEP is designed to perform emissions estimation using user-specified selections for spatial extent and emissions factors. It accesses a hosted database of structures impacted by wildfire in California from 2018 to the present that includes damage inspection and structure information, including square footage.

Using the estimator, users can pull emissions estimation from the database using three query methods:

Interactive – walks users through building a query step-by-step.
Spatial – users provide a polygon geometry shapefile or geopackage and (optional) a date range.
Automated – users provide a filter field, filter value, and (optional) date range.

In addition to a query type, users can use defaults or specify estimation parameters to use for emissions estimation.

Here we demonstrate a spatial query and an automated query (the input method for the interactive filter won’t work in this file). I highly recommend the interactive filter as a way to explore the data and understand the available filtering options.

Spatial Emissions Estimation Query

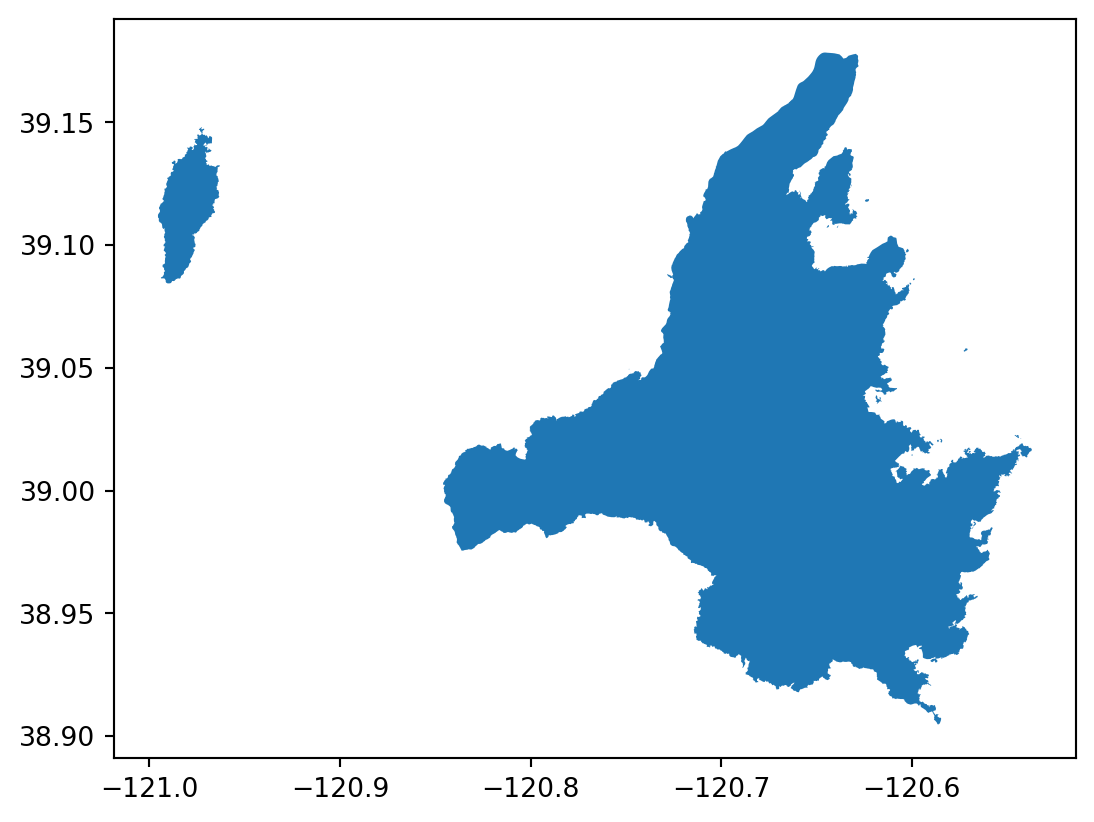

Read in or point to an AOI

For the spatial filter, users can provide a path to a shapefile (.shp) or geopackage, or use a geodataframe object.
It can have one or multiple polygons. In the tool output, columns from the polygon_input are retained and tagged with “AOI” at the start of the column.

# Here we read in a file so we can take a look first-- however, aoi_path could also be used as the input for "polygon_input".
# Mosquito (2022) and River (2021) fires.
aoi_path = os.path.join(config.demo_dir, "demo_multipoly.shp")
aoi = gpd.read_file(aoi_path)
aoi.plot()

Run sweep_estimator

Here we run the main function, sweep_estimator.

We use the get_mode “use_default”, but as stated in the readme users who need to download or refresh the database should use get_mode = “refresh”. NOTE: using “refresh” to pull from the burned structure database requires access to a CARB ArcGIS online organizational login.
polygon_input can either be a gdf (as in this case) or a path.
We can include ‘AOI_INDEX’ in aggregation_fields for a summarized output file to ensure we get a summary per polygon in our aoi dataset.
Note the three outputs: emissions_gdf (a geodataframe of each structure and its emissions), agg_table (a summary dataframe), and vehicle_table.

emissions_gdf, agg_table, vehicle_table = sweep_estimator(
    get_mode = "use_default",
    filter_method = "Spatial",
    polygon_input = aoi,
    aggregate_fields=['AIR DISTRICT', 'AOI_INDEX']
    )

print("Complete!")

Loading BSDB using use_default...
Applying filter criteria...
No date filter applied.
Reprojecting polygon from EPSG:4326 to EPSG:3310.
451 rows after spatial filtering with   fire_name    incident_n start_date                          group_id  \
0  Mosquito  CATNF 001371 2022-09-06  Mosquito_CATNF 001371_2022-09-06
1     River  CANEU 020628 2021-08-04     River_CANEU 020628_2021-08-04

  fp_source                                           geometry
0      FRAP  MULTIPOLYGON (((-120.56853 38.98437, -120.5686...
1      FRAP  POLYGON ((-120.99035 39.0844, -120.99116 39.08...  .
Estimating emissions for pollutants: ['CO', 'NOx', 'SOx', 'PM', 'TOG']...
Holder efs from: C:\Users\gstarrs\Projects\CARB\sweep_test\data\emissions_factors\Holder_EFs.xlsx
Requested pollutants: ['CO', 'NOx', 'SOx', 'PM', 'TOG']
Returned pollutants: ['CO' 'NOx' 'SOx' 'PM' 'TOG']
Aggregating report by: ['AIR DISTRICT', 'AOI_INDEX']...
Calculating vehicle emissions with HOLDER factors...
Ratio provided: 311.04 vehicles estimated using ratio: 1.44
Holder efs from: C:\Users\gstarrs\Projects\CARB\sweep_test\data\emissions_factors\Holder_EFs.xlsx
Requested pollutants: ['CO', 'NOx', 'SOx', 'PM']
Returned pollutants: ['CO' 'NOx' 'SOx' 'PM']
Reports written to folder: C:\Users\gstarrs\Projects\CARB\sweep_test\outputs\SWEEP_20250621_221211
Tabular reports written.
Spatial data written to C:\Users\gstarrs\Projects\CARB\sweep_test\outputs\SWEEP_20250621_221211\Emissions_Spatial.gpkg
Complete!

Outputs

In the returned dataframes, columns from the aoi_source are retained and tagged with “AOI” at the start of the column.

Emissions Report

emissions_gdf is a geodataframe of each structure and their estimated emissions, along with parameters used in the estimation process.

print(emissions_gdf.crs)
emissions_gdf.head(5)

EPSG:3310

	AOI_FIRE_NAME	AOI_INCIDENT_N	AOI_START_DATE	AOI_GROUP_ID	AOI_FP_SOURCE	AOI_INDEX	INCIDENTNAME	INCIDENTNUM	START_DATE	GLOBALID_DINS	DAMAGE	STRUCTURETYPE	STRUCTURECATEGORY	CAT	SQFT	SQFT_SOURCE	COUNTY	AIR_BASIN	AIR_DISTRICT	COABDIS	CONSUMPTION_FACTOR	FRAME_FACTOR	CONTENTS_FACTOR	geometry	E_CO_TN	E_NOX_TN	E_SOX_TN	E_PM_TN	E_TOG_TN	MONTH	YEAR
60130	River	CANEU 020628	2021-08-04	River_CANEU 020628_2021-08-04	FRAP	1	River	CANEU 020628	2021-08-04	{5A6B63E7-0584-4A3D-9566-D1BED0D23610}	Destroyed (>50%)	Single Family Residence Single Story	Single Residence	SFSS	1458.0	MEDIAN	Placer	MOUNTAIN COUNTIES	Placer	31_MC_PLA	0.95	31.07	5.87	POINT (-84115.053 121871.211)	1.765	0.008	0.002	1.005	0.073	8	2021
60132	River	CANEU 020628	2021-08-04	River_CANEU 020628_2021-08-04	FRAP	1	River	CANEU 020628	2021-08-04	{28A405D3-B735-4C6A-9030-5DB781554E63}	Destroyed (>50%)	Single Family Residence Single Story	Single Residence	SFSS	1458.0	MEDIAN	Placer	MOUNTAIN COUNTIES	Placer	31_MC_PLA	0.95	31.07	5.87	POINT (-84075.412 121847.802)	1.765	0.008	0.002	1.005	0.073	8	2021
60133	River	CANEU 020628	2021-08-04	River_CANEU 020628_2021-08-04	FRAP	1	River	CANEU 020628	2021-08-04	{A8436F57-068C-4D19-B659-48B51EE6DCA0}	Destroyed (>50%)	Single Family Residence Single Story	Single Residence	SFSS	1458.0	MEDIAN	Placer	MOUNTAIN COUNTIES	Placer	31_MC_PLA	0.95	31.07	5.87	POINT (-84093.56 121769.283)	1.765	0.008	0.002	1.005	0.073	8	2021
60135	River	CANEU 020628	2021-08-04	River_CANEU 020628_2021-08-04	FRAP	1	River	CANEU 020628	2021-08-04	{18869BDE-69CE-4F93-B844-2F9C416A57CD}	No Damage	Single Family Residence Single Story	Single Residence	SFSS	2411.0	PARCEL	Placer	MOUNTAIN COUNTIES	Placer	31_MC_PLA	0.00	31.07	5.87	POINT (-84135.956 121591.938)	0.000	0.000	0.000	0.000	0.000	8	2021
60136	River	CANEU 020628	2021-08-04	River_CANEU 020628_2021-08-04	FRAP	1	River	CANEU 020628	2021-08-04	{84EC24BE-B097-4FB8-8287-406BB9929E4F}	Destroyed (>50%)	Single Family Residence Single Story	Single Residence	SFSS	1458.0	MEDIAN	Placer	MOUNTAIN COUNTIES	Placer	31_MC_PLA	0.95	31.07	5.87	POINT (-83735.224 122402.04)	1.765	0.008	0.002	1.005	0.073	8	2021

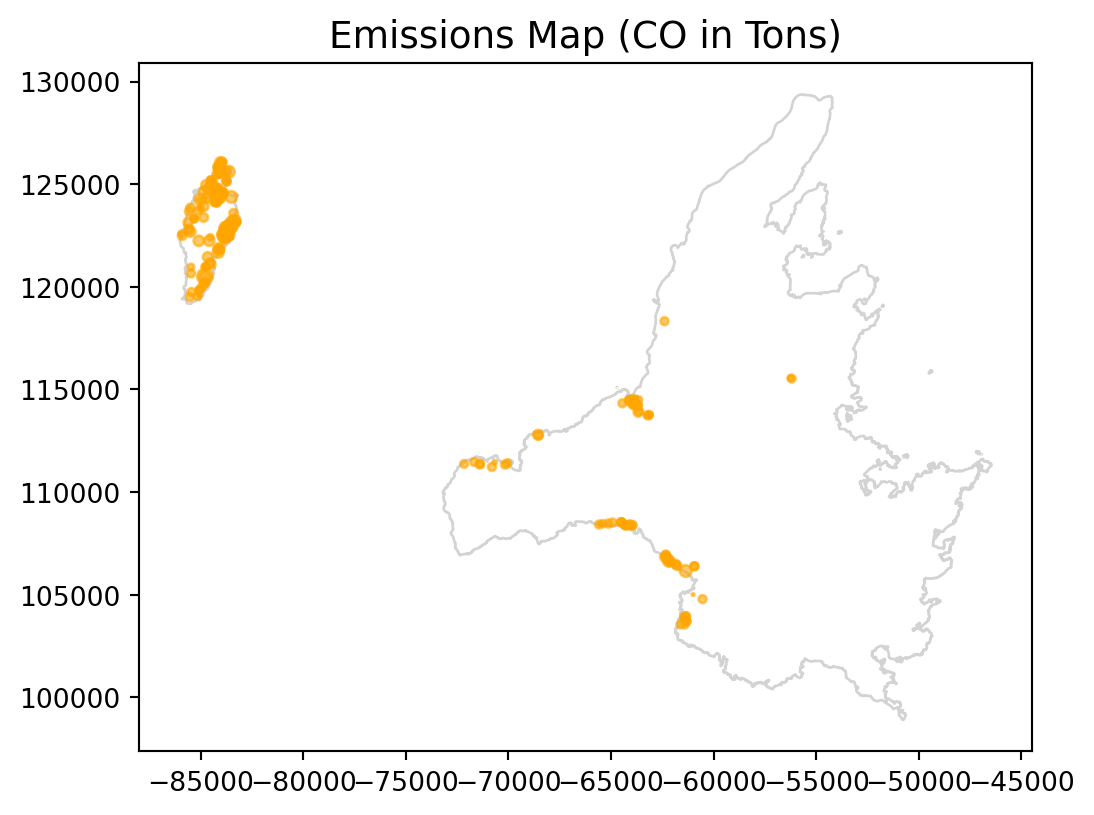

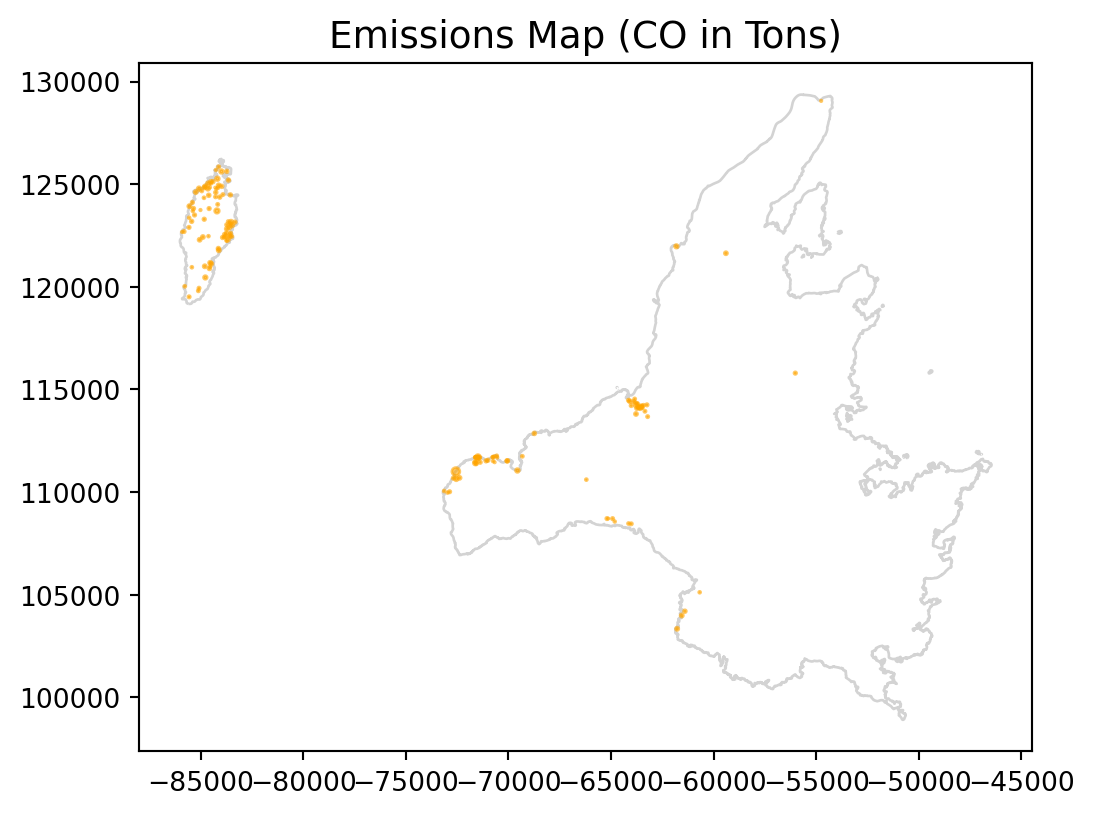

As a geodataframe, the output is easily visualized using the geopandas and matplotlib libraries.

# Read the AOI in to use as a base layer
aoi = gpd.read_file(aoi_path)

# Project to match emissions gdf
aoi_gdf = aoi.to_crs(emissions_gdf.crs)

fig, ax = plt.subplots(figsize=(6, 8))

aoi_gdf.plot(ax=ax, color='none', edgecolor='lightgray', linewidth=1)

# Scale the dots based off of emissions of CO.
sizes = emissions_gdf["E_CO_TN"].fillna(0) * 5
emissions_gdf.plot(
    ax=ax,
    color='orange',
    alpha=0.6,
    markersize=sizes
)
ax.set_title("Emissions Map (CO in Tons)", fontsize=14)

Text(0.5, 1.0, 'Emissions Map (CO in Tons)')

Aggregated Table

In this demo run, we provided “AIR DISTRICT” and “AOI_INDEX” as the aggregation fields. As you can see our results are split by AOI_INDEX (the polygon) and AIR_DISTRICT. We get total emissions for each polygon in each air district.

agg_table.head()

	AIR_DISTRICT	AOI_INDEX	E_CO_TN	E_NOX_TN	E_SOX_TN	E_PM_TN	E_TOG_TN	DAMAGED_STRUCTURES
0	El Dorado	0	70.53	0.33	0.07	40.17	2.92	40
1	Northern Sierra	1	150.28	0.71	0.14	85.59	6.22	79
2	Placer	0	55.88	0.26	0.05	31.82	2.32	37
3	Placer	1	129.24	0.61	0.12	73.60	5.35	62

We can use the full dataframe to add other AOI attributes back in:

# Get the full list of AOI_ columns from the emissions_gdf dataframe
aoi_cols = [col for col in emissions_gdf.columns if col.startswith("AOI_")]

# Drop duplicates to get unique AOI records
unique_aoi = emissions_gdf[aoi_cols].drop_duplicates()

# Merge with agg_table on AOI_INDEX
agg_table_aoi = agg_table.merge(unique_aoi, on="AOI_INDEX", how="left")
agg_table_aoi.head()

	AIR_DISTRICT	AOI_INDEX	E_CO_TN	E_NOX_TN	E_SOX_TN	E_PM_TN	E_TOG_TN	DAMAGED_STRUCTURES	AOI_FIRE_NAME	AOI_INCIDENT_N	AOI_START_DATE	AOI_GROUP_ID	AOI_FP_SOURCE
0	El Dorado	0	70.53	0.33	0.07	40.17	2.92	40	Mosquito	CATNF 001371	2022-09-06	Mosquito_CATNF 001371_2022-09-06	FRAP
1	Northern Sierra	1	150.28	0.71	0.14	85.59	6.22	79	River	CANEU 020628	2021-08-04	River_CANEU 020628_2021-08-04	FRAP
2	Placer	0	55.88	0.26	0.05	31.82	2.32	37	Mosquito	CATNF 001371	2022-09-06	Mosquito_CATNF 001371_2022-09-06	FRAP
3	Placer	1	129.24	0.61	0.12	73.60	5.35	62	River	CANEU 020628	2021-08-04	River_CANEU 020628_2021-08-04	FRAP

Vehicle Table

A very rough estimation of emissions from vehicles (currently there is no statewide open-source real-time report of vehicles destroyed by wildfire). The default method is to estimate the count of vehicles as 1.44 vehicle destroyed per structure destroyed (consumption >50%), a method obtained from Holder et al. 2023. Users can specify what emissions factors and pollutants to use in the vef_choice and vpollutants arguments in sweep_estimator.

vehicle_table

	POLLUTANT	VEHICLE_GFIRE	VEHICLE_GKG	VEHICLES	TOTAL_VEHICLE_EMISSIONS_TN
1	CO	22128.0	48.0	311.04	7.59
2	NOx	1844.0	4.0	311.04	0.63
8	SOx	875.9	1.9	311.04	0.30
15	PM	26369.2	57.2	311.04	9.04

Automated Emissions Estimation Query

In an “automated” query, we can set filter_field, filter_values, and, optionally, date ranges (apply_date_filter, start_date, and end_date).
This allows users to run a query without working through the interactive tool.
If you’re savvy you can loop over date ranges or other filter_fields/filter_values to get a series of reports.
If running in an IDE, hovering over any function should provide typing hints and parameter information.

Run sweep_estimator with pre-set filter fields

emissions_gdf_auto, agg_table_auto, vehicle_table_auto = sweep_estimator(
    get_mode = "use_default",
    filter_method = "automated",
    filter_field = "Air Basin",
    field_values = ["MOUNTAIN COUNTIES", "SAN JOAQUIN VALLEY"],
    apply_date_filter = True,
    start_date = "2018-01-01",
    end_date = "2021-01-01",
    aggregate_fields=['AIR DISTRICT', 'YEAR', 'INCIDENT'],
    # Adding a few more arguments-- here we specify the emissions factor source (HOLDER)
    ef_choice = "HOLDER",
    # And here we override the default to say we want ALL the pollutants available for the emissions factor source.
    pollutants = "All",
    write = "No"
    )

print("Complete!")
emissions_gdf_auto.head()

Loading BSDB using use_default...
Applying filter criteria...
59137 rows after date filtering from 2018-01-01 to 2021-01-01.
4501 rows after filtering by Air Basin: ['MOUNTAIN COUNTIES', 'SAN JOAQUIN VALLEY'].
Estimating emissions for pollutants: All...
Holder efs from: C:\Users\gstarrs\Projects\CARB\sweep_test\data\emissions_factors\Holder_EFs.xlsx
Requested pollutants: All
Returned pollutants: ['CO2' 'CO' 'NOx' 'NO' 'NO2 ' 'HCN' 'NH3' 'SO2' 'SOx' 'H2S' 'HCl' 'HBr'
 'HF' 'THC' 'Isocyanates' 'PM' 'Elemental Carbon' 'Organic Carbon' 'Pb'
 'Sb' 'Cl' 'Br' 'TOG' 'Benzene' 'Chlorobenzene' 'Toluene' 'Ethylbenzene'
 'Ethynylbenzene' 'Styrene' 'Ethene' 'Phenol' 'Pyridine' 'Benzonitrile'
 'Formaldehyde' 'Acetaldehyde' 'Acrolein' 'PAH' 'Naphthalene'
 'Acenaphthene' 'Acenaphthylene' 'Methylnaphthalenes' 'Biphenyl' 'Indene'
 'Fluorene' 'Phenanthrene' 'Anthracene' 'Fluoranthene' 'Pyrene'
 'Benzo(a)fluorene' 'Benzo(b)fluorene' 'Benz(a)anthracene' 'Chrysene'
 'Benzo(b)fluoranthene' 'Benzo(k)fluoranthene' 'Benzo(a)pyrene'
 'Benzo(e)pyrene' 'Perylene' 'Indeno(1,2,3-c,d)pyrene'
 'Benzo(g,h,i,)perylene' 'Dibenzo(a,h)anthracene' 'Coronene' 'PCDD' 'PCDF']
Aggregating report by: ['AIR DISTRICT', 'YEAR', 'INCIDENT']...
Calculating vehicle emissions with HOLDER factors...
Ratio provided: 1738.08 vehicles estimated using ratio: 1.44
Holder efs from: C:\Users\gstarrs\Projects\CARB\sweep_test\data\emissions_factors\Holder_EFs.xlsx
Requested pollutants: ['CO', 'NOx', 'SOx', 'PM']
Returned pollutants: ['CO' 'NOx' 'SOx' 'PM']
Complete!

	INCIDENTNAME	INCIDENTNUM	START_DATE	GLOBALID_DINS	DAMAGE	STRUCTURETYPE	STRUCTURECATEGORY	CAT	SQFT	SQFT_SOURCE	COUNTY	AIR_BASIN	AIR_DISTRICT	COABDIS	CONSUMPTION_FACTOR	FRAME_FACTOR	CONTENTS_FACTOR	geometry	E_CO2_TN	E_CO_TN	E_NOX_TN	E_NO_TN	E_NO2 _TN	E_HCN_TN	E_NH3_TN	E_SO2_TN	E_SOX_TN	E_H2S_TN	E_HCL_TN	E_HBR_TN	E_THC_TN	E_PM_TN	E_ELEMENTAL CARBON_TN	E_ORGANIC CARBON_TN	E_CL_TN	E_TOG_TN	E_BENZENE_TN	E_CHLOROBENZENE_TN	E_TOLUENE_TN	E_ETHYLBENZENE_TN	E_ETHYNYLBENZENE_TN	E_STYRENE_TN	E_ETHENE_TN	E_PHENOL_TN	E_PYRIDINE_TN	E_BENZONITRILE_TN	E_FORMALDEHYDE_TN	E_ACETALDEHYDE_TN	E_PAH_TN	E_NAPHTHALENE_TN	E_ACENAPHTHYLENE_TN	E_METHYLNAPHTHALENES_TN	E_BIPHENYL_TN	E_INDENE_TN	E_PHENANTHRENE_TN	E_FLUORANTHENE_TN	E_PYRENE_TN	MONTH	YEAR
656	Wagner	CAMMU 016004	2018-08-04	{CA9382AF-9449-4988-98CE-C00CE3C55B32}	Destroyed (>50%)	Single Family Residence Single Story	Single Residence	SFSS	1458.000000	MEDIAN	Mariposa	MOUNTAIN COUNTIES	Mariposa	22_MC_MPA	0.95	31.07	5.87	POINT (-9578.918 -33825.916)	33.897	1.765	0.008	0.013	0.014	0.038	0.021	0.002	0.002	0.056	0.281	0.008	1.489	1.005	0.196	0.045	0.091	0.073	0.015	0.008	0.003	0.001	0.002	0.002	0.011	0.001	0.001	0.001	0.006	0.005	0.002	0.003	0.002	0.001	0.001	0.001	0.002	0.001	0.001	8	2018
1486	Frazier	CAFKU 007893	2018-06-03	{1765CBC6-51CC-4A19-883C-1F5509FC5A3F}	Minor (10-25%)	Single Family Residence Single Story	Single Residence	SFSS	1752.000000	PARCEL	Fresno	SAN JOAQUIN VALLEY	San Joaquin Valley Unified	10_SJV_SJU	0.00	31.07	5.87	POINT (43612.19 -105244.953)	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	6	2018
1504	Omega	CAAEU 021770	2018-08-01	{39799A65-7A77-4BC3-BFD6-B042F640C830}	No Damage	Single Family Residence Single Story	Single Residence	SFSS	1391.000000	PARCEL	El Dorado	MOUNTAIN COUNTIES	El Dorado	9_MC_ED	0.00	31.07	5.87	POINT (-89600.032 90657.664)	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	8	2018
1505	Omega	CAAEU 021770	2018-08-01	{92C931E6-9D5F-47B5-B82B-968E7AAA02D8}	Minor (10-25%)	Single Family Residence Single Story	Single Residence	SFSS	1777.000000	PARCEL	El Dorado	MOUNTAIN COUNTIES	El Dorado	9_MC_ED	0.00	31.07	5.87	POINT (-89674.345 90491.003)	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	8	2018
1506	Omega	CAAEU 021770	2018-08-01	{288E3A2E-03B8-4FA3-9A05-85503FBC3A4C}	Minor (10-25%)	Single Family Residence Single Story	Single Residence	SFSS	1666.421397	MODEL_A	El Dorado	MOUNTAIN COUNTIES	El Dorado	9_MC_ED	0.00	31.07	5.87	POINT (-89807.299 90485.001)	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	8	2018

TIP for filtering

Since it is difficult to document every possible choice for each field value for each potential filter field (choices: [“Wildfire Name”, “Incident Number”, “County”, “Air Basin”, “Air District”, “CoAbDis Code”]), you can pull possible values from the current BSDB database.

# We read in one of the classes from the package.
from sweep.get_bsdb import GetBSDB

# bsdb_df is the geodataframe of the BSDB.
bsdb_df = GetBSDB("use_default").bsdb_df

# Air basins in the dataset:
print(f"Air Basins: {bsdb_df['BASIN_NAME'].unique()}")

# Air districts in the dataset:
print(f"Air Districts: {bsdb_df['DIS_NAME'].unique()}")

# All filter field column names: ["incidentname", "incidentnum", "CO_NAME", "BASIN_NAME", "DIS_NAME", "COABDIS"]
# Note the argument filter_field uses the cleaned-up names: ["Wildfire Name", "Incident Number", "County", "Air Basin", "Air District", "CoAbDis Code"]

# Date field: ["clean_date"]

Air Basins: ['SOUTH COAST' 'SOUTH CENTRAL COAST' 'NORTH COAST'
 'SAN FRANCISCO BAY AREA' 'SAN DIEGO COUNTY' 'MOUNTAIN COUNTIES'
 'SACRAMENTO VALLEY' 'LAKE COUNTY' 'SAN JOAQUIN VALLEY'
 'NORTHEAST PLATEAU' 'MOJAVE DESERT' 'NORTH CENTRAL COAST'
 'GREAT BASIN VALLEYS' 'LAKE TAHOE' 'SALTON SEA' '']
Air Districts: ['South Coast' 'Santa Barbara' 'Ventura' 'Northern Sonoma' 'Bay Area'
 'San Diego' 'San Luis Obispo' 'Mariposa' 'Butte' 'Lake' 'Yolo-Solano'
 'San Joaquin Valley Unified' 'Placer' 'El Dorado' 'Mendocino' 'Shasta'
 'Tehama' 'Lassen' 'North Coast Unified' 'Siskiyou' 'Amador' 'Calaveras'
 'Tuolumne' 'Antelope Valley' 'Monterey Bay Unified' 'Kern'
 'Northern Sierra' 'Feather River' 'Glenn' 'Sacramento Metro'
 'Great Basin Unified' '' 'Mojave Desert' 'Colusa']

NOTE:

All filter field column names: [“incidentname”, “incidentnum”, “CO_NAME”, “BASIN_NAME”, “DIS_NAME”, “COABDIS”]
The argument filter_field uses the cleaned-up names: [“Wildfire Name”, “Incident Number”, “County”, “Air Basin”, “Air District”, “CoAbDis Code”]

Have fun!

Outputs

The outputs are the same as for the interactive and spatial query types. As specified in “aggregate_fields”, the aggregate table is summarized by year, air district, and fire incident.

agg_table_auto

	AIR_DISTRICT	YEAR	INCIDENTNAME	E_CO2_TN	E_CO_TN	E_NOX_TN	E_NO_TN	E_NO2 _TN	E_HCN_TN	E_NH3_TN	E_SO2_TN	E_SOX_TN	E_H2S_TN	E_HCL_TN	E_HBR_TN	E_THC_TN	E_PM_TN	E_ELEMENTAL CARBON_TN	E_ORGANIC CARBON_TN	E_PB_TN	E_CL_TN	E_TOG_TN	E_BENZENE_TN	E_CHLOROBENZENE_TN	E_TOLUENE_TN	E_ETHYLBENZENE_TN	E_ETHYNYLBENZENE_TN	E_STYRENE_TN	E_ETHENE_TN	E_PHENOL_TN	E_PYRIDINE_TN	E_BENZONITRILE_TN	E_FORMALDEHYDE_TN	E_ACETALDEHYDE_TN	E_ACROLEIN_TN	E_PAH_TN	E_NAPHTHALENE_TN	E_ACENAPHTHYLENE_TN	E_METHYLNAPHTHALENES_TN	E_BIPHENYL_TN	E_INDENE_TN	E_FLUORENE_TN	E_PHENANTHRENE_TN	E_ANTHRACENE_TN	E_FLUORANTHENE_TN	E_PYRENE_TN	E_BENZ(A)ANTHRACENE_TN	E_CHRYSENE_TN	E_BENZO(B)FLUORANTHENE_TN	E_BENZO(A)PYRENE_TN	E_INDENO(1,2,3-C,D)PYRENE_TN	E_BENZO(G,H,I,)PERYLENE_TN	DAMAGED_STRUCTURES
0	Amador	2018	Irish	33.95	1.77	0.01	0.01	0.01	0.04	0.02	0.00	0.00	0.06	0.28	0.01	1.49	1.01	0.20	0.04	0.00	0.09	0.07	0.02	0.01	0.00	0.00	0.00	0.00	0.01	0.00	0.00	0.00	0.01	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	1.0
1	Amador	2019	Willow	33.90	1.76	0.01	0.01	0.01	0.04	0.02	0.00	0.00	0.06	0.28	0.01	1.49	1.00	0.20	0.04	0.00	0.09	0.07	0.02	0.01	0.00	0.00	0.00	0.00	0.01	0.00	0.00	0.00	0.01	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	1.0
2	Calaveras	2018	Horse	64.95	3.38	0.02	0.02	0.03	0.07	0.04	0.00	0.00	0.11	0.54	0.02	2.85	1.93	0.38	0.09	0.00	0.18	0.14	0.03	0.01	0.01	0.00	0.00	0.00	0.02	0.00	0.00	0.00	0.01	0.01	0.00	0.00	0.01	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	2.0
3	Calaveras	2018	Waverly	37.95	1.98	0.01	0.01	0.02	0.04	0.02	0.00	0.00	0.06	0.32	0.01	1.67	1.13	0.22	0.05	0.00	0.10	0.08	0.02	0.01	0.00	0.00	0.00	0.00	0.01	0.00	0.00	0.00	0.01	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	1.0
4	El Dorado	2018	Meyers	146.93	7.65	0.04	0.06	0.06	0.17	0.09	0.01	0.01	0.24	1.22	0.04	6.46	4.36	0.85	0.20	0.00	0.39	0.32	0.06	0.03	0.01	0.00	0.01	0.01	0.05	0.00	0.00	0.00	0.03	0.02	0.00	0.01	0.01	0.01	0.00	0.00	0.00	0.00	0.01	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	4.0
5	El Dorado	2018	Omega	31.80	1.66	0.01	0.01	0.01	0.04	0.02	0.00	0.00	0.05	0.26	0.01	1.40	0.94	0.18	0.04	0.00	0.08	0.07	0.01	0.01	0.00	0.00	0.00	0.00	0.01	0.00	0.00	0.00	0.01	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	1.0
6	El Dorado	2019	County	55.87	2.91	0.01	0.02	0.02	0.06	0.04	0.00	0.00	0.09	0.46	0.01	2.45	1.66	0.32	0.07	0.00	0.15	0.12	0.02	0.01	0.00	0.00	0.00	0.00	0.02	0.00	0.00	0.00	0.01	0.01	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	2.0
7	El Dorado	2019	Rimrock	33.90	1.76	0.01	0.01	0.01	0.04	0.02	0.00	0.00	0.06	0.28	0.01	1.49	1.00	0.20	0.04	0.00	0.09	0.07	0.02	0.01	0.00	0.00	0.00	0.00	0.01	0.00	0.00	0.00	0.01	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	1.0
8	El Dorado	2020	Cameron	64.80	3.37	0.02	0.02	0.03	0.07	0.04	0.00	0.00	0.11	0.54	0.02	2.85	1.92	0.38	0.09	0.00	0.17	0.14	0.03	0.02	0.01	0.00	0.00	0.00	0.02	0.00	0.00	0.00	0.01	0.01	0.00	0.00	0.01	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	2.0
9	Mariposa	2018	Wagner	309.20	16.10	0.08	0.12	0.13	0.35	0.19	0.02	0.02	0.51	2.57	0.08	13.58	9.17	1.79	0.41	0.00	0.83	0.67	0.13	0.07	0.03	0.01	0.02	0.02	0.10	0.01	0.01	0.01	0.06	0.04	0.00	0.02	0.03	0.02	0.01	0.01	0.01	0.00	0.02	0.00	0.01	0.01	0.00	0.00	0.00	0.00	0.00	0.00	7.0
10	Northern Sierra	2020	Jones	663.40	34.54	0.16	0.25	0.28	0.75	0.41	0.03	0.03	1.10	5.50	0.16	29.14	19.67	3.84	0.88	0.00	1.78	1.43	0.29	0.15	0.06	0.02	0.04	0.04	0.22	0.02	0.02	0.02	0.12	0.10	0.00	0.04	0.06	0.04	0.02	0.02	0.02	0.00	0.04	0.00	0.02	0.02	0.00	0.00	0.00	0.00	0.00	0.00	18.0
11	Northern Sierra	2020	North Complex	934.80	48.68	0.23	0.36	0.39	1.06	0.58	0.05	0.05	1.55	7.76	0.22	41.06	27.72	5.41	1.24	0.00	2.51	2.02	0.41	0.21	0.08	0.03	0.06	0.06	0.30	0.03	0.02	0.03	0.17	0.14	0.00	0.05	0.08	0.06	0.03	0.02	0.03	0.00	0.06	0.00	0.03	0.03	0.00	0.00	0.00	0.00	0.00	0.00	25.0
12	San Joaquin Valley Unified	2018	Frazier	33.90	1.76	0.01	0.01	0.01	0.04	0.02	0.00	0.00	0.06	0.28	0.01	1.49	1.00	0.20	0.04	0.00	0.09	0.07	0.02	0.01	0.00	0.00	0.00	0.00	0.01	0.00	0.00	0.00	0.01	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	1.0
13	San Joaquin Valley Unified	2020	Creek	31600.97	1645.57	7.74	11.99	13.24	35.71	19.63	1.57	1.57	52.22	262.23	7.62	1388.08	937.18	183.01	41.98	0.06	84.84	68.16	13.70	7.19	2.80	1.20	1.82	2.13	10.31	0.86	0.84	1.18	5.83	4.61	0.17	1.74	2.66	1.98	0.86	0.83	0.96	0.20	2.08	0.06	0.86	0.86	0.01	0.04	0.15	0.01	0.04	0.04	871.0
14	San Joaquin Valley Unified	2020	SCU Lightning Cmplx	1647.28	85.78	0.40	0.63	0.69	1.86	1.02	0.09	0.09	2.72	13.66	0.39	72.36	48.85	9.53	2.19	0.00	4.42	3.55	0.72	0.38	0.15	0.06	0.09	0.10	0.54	0.05	0.04	0.06	0.30	0.24	0.00	0.09	0.14	0.10	0.05	0.04	0.05	0.00	0.10	0.00	0.05	0.05	0.00	0.00	0.00	0.00	0.00	0.00	52.0
15	San Joaquin Valley Unified	2020	SQF Complex	9037.80	470.61	2.21	3.44	3.77	10.23	5.63	0.42	0.42	14.93	74.98	2.19	396.98	268.04	52.33	12.01	0.00	24.24	19.52	3.95	2.07	0.82	0.33	0.52	0.63	2.93	0.22	0.21	0.33	1.67	1.35	0.09	0.51	0.73	0.54	0.22	0.21	0.30	0.09	0.63	0.00	0.22	0.22	0.00	0.00	0.08	0.00	0.00	0.00	233.0
16	Tuolumne	2018	Ruby	31.43	1.64	0.01	0.01	0.01	0.04	0.02	0.00	0.00	0.05	0.26	0.01	1.38	0.93	0.18	0.04	0.00	0.08	0.07	0.01	0.01	0.00	0.00	0.00	0.00	0.01	0.00	0.00	0.00	0.01	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	1.0

Emissions Predictor

NOTE: A Lightbox Parcel API key is REQUIRED to use the emissions predictor.

The predictor uses parcel square footage data (where available) to estimate potential emissions within a user-provided polygon or set of polygons. The analysis is limited to parcels where square footage data is available. Users provide a percentage of structures within the polygon to assume “destroyed” by wildfire. As with the estimator, users provide emissions estimation parameters (or use the default), and the tool returns points and excel files with the requested estimates.

from sweep.predictor_main import sweep_predictor
from dotenv import load_dotenv
load_dotenv()

True

Read in or point to an AOI

The AOI is the polygon shape or shapes in which emissions will be estimated. In the Predictor function, this is aoi_source, and like polygon_input in sweep_estimator, it can be either a geopandas geodataframe, or a path to a geopackage or shapefile.

The aoi_source will be reprojected if needed and have each row or feature indexed seperately, with all columns retained in the final products.

# Recycling! We'll use the same aoi as the spatial query above.
aoi.plot()

Run sweep_predictor

Key differences related to the predictor are:

aoi_source: a geodataframe or shapeflie/geopackage path is required.
api_key: the need for a LightBox API key
ratio_destroyed: users must specify the ratio of structures to designate “destroyed” by fire.

predicted_emissions_gdf, agg_table, vehicle_table = sweep_predictor(
    aoi_source = aoi,
    # You need a lightbox API key to get the parcel data.
    api_key = os.getenv('LB_API_KEY'),
    ratio_destroyed = 0.8,
    pollutants = None,
    aggregate_fields = ['AIR DISTRICT', 'AOI_INDEX'],
    write = "No")

Fetching parcel data...
https://api.lightboxre.com/v1/parcels/us/geometry
Offset: 0, Limit: 500, Status code: 200
Offset: 500, Limit: 500, Status code: 200
Offset: 1000, Limit: 500, Status code: 200
Offset: 1500, Limit: 500, Status code: 200
Offset: 2000, Limit: 500, Status code: 200
Offset: 2500, Limit: 500, Status code: 200
Offset: 3000, Limit: 500, Status code: 200
https://api.lightboxre.com/v1/parcels/us/geometry
Offset: 0, Limit: 500, Status code: 200
Offset: 500, Limit: 500, Status code: 200
https://api.lightboxre.com/v1/assessments/us/geometry
Offset: 0, Limit: 500, Status code: 200
Offset: 500, Limit: 500, Status code: 200
Offset: 1000, Limit: 500, Status code: 200
Offset: 1500, Limit: 500, Status code: 200
Offset: 2000, Limit: 500, Status code: 200
Offset: 2500, Limit: 500, Status code: 200
Offset: 3000, Limit: 500, Status code: 200
Offset: 3500, Limit: 500, Status code: 200
Offset: 4000, Limit: 500, Status code: 200
Offset: 4500, Limit: 500, Status code: 200
Offset: 5000, Limit: 500, Status code: 200
Offset: 5500, Limit: 500, Status code: 200
Offset: 6000, Limit: 500, Status code: 200
Offset: 6500, Limit: 500, Status code: 200
Offset: 7000, Limit: 500, Status code: 200
Offset: 7500, Limit: 500, Status code: 200
Offset: 8000, Limit: 500, Status code: 200
Offset: 8500, Limit: 500, Status code: 200
Offset: 9000, Limit: 500, Status code: 200
Offset: 9500, Limit: 500, Status code: 200
Offset: 10000, Limit: 500, Status code: 200
https://api.lightboxre.com/v1/assessments/us/geometry
Offset: 0, Limit: 500, Status code: 200
Offset: 500, Limit: 500, Status code: 200
Processing parcels...
Parcel and assessment datasets joined and fields cleaned.
Joined dataset clipped to fire geometry.
Generating synthetic BSDB...
Missing columns: {'OBJECTID', 'centroid', 'SITE_HOUSE_NUMBER', 'COMMUNITY', 'INCIDENTSTARTDATE', 'ZONING', 'STREETNAME', 'TOTAL_ROOMS', 'TOTAL_BATHS', 'geometry', 'STREETSUFFIX', 'ZIPCODE', 'INCIDENTNUM', 'CITY', 'BEDROOMS', 'SITE_UNIT_PREFIX', 'STATE', 'UNITS_NUMBER', 'STRUCTURECATEGORY', 'SQFEET', 'FEMA_SQFT', 'PARCEL_CAT_MATCH', 'STRUCTURETYPE', 'DAMAGE', 'GLOBALID', 'FEMA_PMFT', 'STREETNUMBER', 'HAZARDTYPE', 'SITEADDRESS', 'CO_NAME', 'STREETTYPE', 'YEARBUILT', 'SITE_UNIT_NUMBER', 'APN', 'CALFIREUNIT', 'SITE_DIRECTION'}
Estimating emissions for pollutants: ['CO', 'NOx', 'SOx', 'PM', 'TOG']...
Holder efs from: C:\Users\gstarrs\Projects\CARB\sweep_test\data\emissions_factors\Holder_EFs.xlsx
Requested pollutants: ['CO', 'NOx', 'SOx', 'PM', 'TOG']
Returned pollutants: ['CO' 'NOx' 'SOx' 'PM' 'TOG']
Aggregating report by: ['AIR DISTRICT', 'AOI_INDEX']...
Calculating vehicle emissions with CARB factors...
Ratio provided: 216.0 vehicles estimated using ratio: 1.44
CARB efs from: C:\Users\gstarrs\Projects\CARB\sweep_test\data\emissions_factors\CARB_EFs.xlsx
Requested pollutants: ['CO', 'NOx', 'SOx', 'PM']
Returned pollutants: ['CO' 'NOx' 'SOx' 'PM']
Processing complete.

Outputs

In the returned dataframes, columns from the aoi_source are retained and tagged with “AOI” at the start of the column.
predicted_emissions_gdf is a geodataframe of each record used to estimate emissions.
Each “structure” is derived from the parcels that fell within the AOI.

print(predicted_emissions_gdf.crs)
predicted_emissions_gdf.head()

EPSG:3310

	AOI_FIRE_NAME	AOI_INCIDENT_N	AOI_START_DATE	AOI_GROUP_ID	AOI_FP_SOURCE	INCIDENTNAME	START_DATE	DAMAGE	CAT	SQFT	SQFT_SOURCE	COUNTY	AIR_BASIN	AIR_DISTRICT	CONSUMPTION_FACTOR	FRAME_FACTOR	CONTENTS_FACTOR	geometry	E_CO_TN	E_NOX_TN	E_SOX_TN	E_PM_TN	E_TOG_TN	MONTH	YEAR
0	Mosquito	CATNF 001371	2022-09-06	Mosquito_CATNF 001371_2022-09-06	FRAP	SWEEP202506212215	2025-06-21	Destroyed (>50%)	SR	145.724907	PARCEL	PLACER	MOUNTAIN COUNTIES	Placer	0.95	31.07	5.87	POINT (-72862.95 110016.358)	0.176	0.001	0.000	0.100	0.007	6	2025
1	Mosquito	CATNF 001371	2022-09-06	Mosquito_CATNF 001371_2022-09-06	FRAP	SWEEP202506212215	2025-06-21	Destroyed (>50%)	MR	171.747212	PARCEL	PLACER	MOUNTAIN COUNTIES	Placer	0.95	31.07	5.87	POINT (-72675.094 110682.073)	0.208	0.001	0.000	0.118	0.009	6	2025
2	Mosquito	CATNF 001371	2022-09-06	Mosquito_CATNF 001371_2022-09-06	FRAP	SWEEP202506212215	2025-06-21	Destroyed (>50%)	SR	79.925651	PARCEL	PLACER	MOUNTAIN COUNTIES	Placer	0.95	31.07	5.87	POINT (-72964.532 109973.298)	0.097	0.000	0.000	0.055	0.004	6	2025
3	Mosquito	CATNF 001371	2022-09-06	Mosquito_CATNF 001371_2022-09-06	FRAP	SWEEP202506212215	2025-06-21	Destroyed (>50%)	MR	98.884758	PARCEL	PLACER	MOUNTAIN COUNTIES	Placer	0.95	31.07	5.87	POINT (-73128.236 110051.244)	0.120	0.001	0.000	0.068	0.005	6	2025
4	Mosquito	CATNF 001371	2022-09-06	Mosquito_CATNF 001371_2022-09-06	FRAP	SWEEP202506212215	2025-06-21	Destroyed (>50%)	COM	1477.881041	PARCEL	PLACER	MOUNTAIN COUNTIES	Placer	0.95	31.07	5.87	POINT (-72557.727 111000.702)	1.789	0.009	0.002	1.019	0.074	6	2025

agg_table

	AIR_DISTRICT	AOI_INDEX	E_CO_TN	E_NOX_TN	E_PM_TN	E_TOG_TN	DAMAGED_STRUCTURES
0	El Dorado	0	1.69	0.01	0.96	0.07	10
1	Northern Sierra	1	9.85	0.05	5.61	0.41	47
2	Placer	0	13.07	0.07	7.44	0.54	60
3	Placer	1	6.02	0.03	3.43	0.25	27

We can again add the full AOI information back in to each AOI polygon based on the index.

aoi_cols = [col for col in predicted_emissions_gdf.columns if col.startswith("AOI_")]
unique_aoi = predicted_emissions_gdf[aoi_cols].drop_duplicates()
agg_table_aoi = agg_table.merge(unique_aoi, on="AOI_INDEX", how="left")
agg_table_aoi

	AIR_DISTRICT	AOI_INDEX	E_CO_TN	E_NOX_TN	E_PM_TN	E_TOG_TN	DAMAGED_STRUCTURES	AOI_FIRE_NAME	AOI_INCIDENT_N	AOI_START_DATE	AOI_GROUP_ID	AOI_FP_SOURCE
0	El Dorado	0	1.69	0.01	0.96	0.07	10	Mosquito	CATNF 001371	2022-09-06	Mosquito_CATNF 001371_2022-09-06	FRAP
1	Northern Sierra	1	9.85	0.05	5.61	0.41	47	River	CANEU 020628	2021-08-04	River_CANEU 020628_2021-08-04	FRAP
2	Placer	0	13.07	0.07	7.44	0.54	60	Mosquito	CATNF 001371	2022-09-06	Mosquito_CATNF 001371_2022-09-06	FRAP
3	Placer	1	6.02	0.03	3.43	0.25	27	River	CANEU 020628	2021-08-04	River_CANEU 020628_2021-08-04	FRAP

We can also remake our map with the predictor’s output instead of reported estimator data.

The predictor has a few main drawbacks.
First, it likely underestimates the count of structures, as parcel data generally reflects the main structure in a parcel. The full DINS dataset also includes minor utility structures, mobile homes, and other types of structures.
Second, not all structures in a fire footprint are destroyed. The predictor’s ratio_destroyed provides users the ability to state the percentage of structures in the AOI destroyed, but it is effectively a placeholder for the data collected on the ground for the DINS dataset.

Map

# Read AOI layer
aoi_gdf = aoi.to_crs(predicted_emissions_gdf.crs)
fig, ax = plt.subplots(figsize=(6, 8))
aoi_gdf.plot(ax=ax, color='none', edgecolor='lightgray', linewidth=1)
sizes = predicted_emissions_gdf["E_CO_TN"].fillna(0) * 5
predicted_emissions_gdf.plot(
    ax=ax,
    color='orange',
    alpha=0.6,
    markersize=sizes
)
ax.set_title("Emissions Map (CO in Tons)", fontsize=14)

Text(0.5, 1.0, 'Emissions Map (CO in Tons)')
